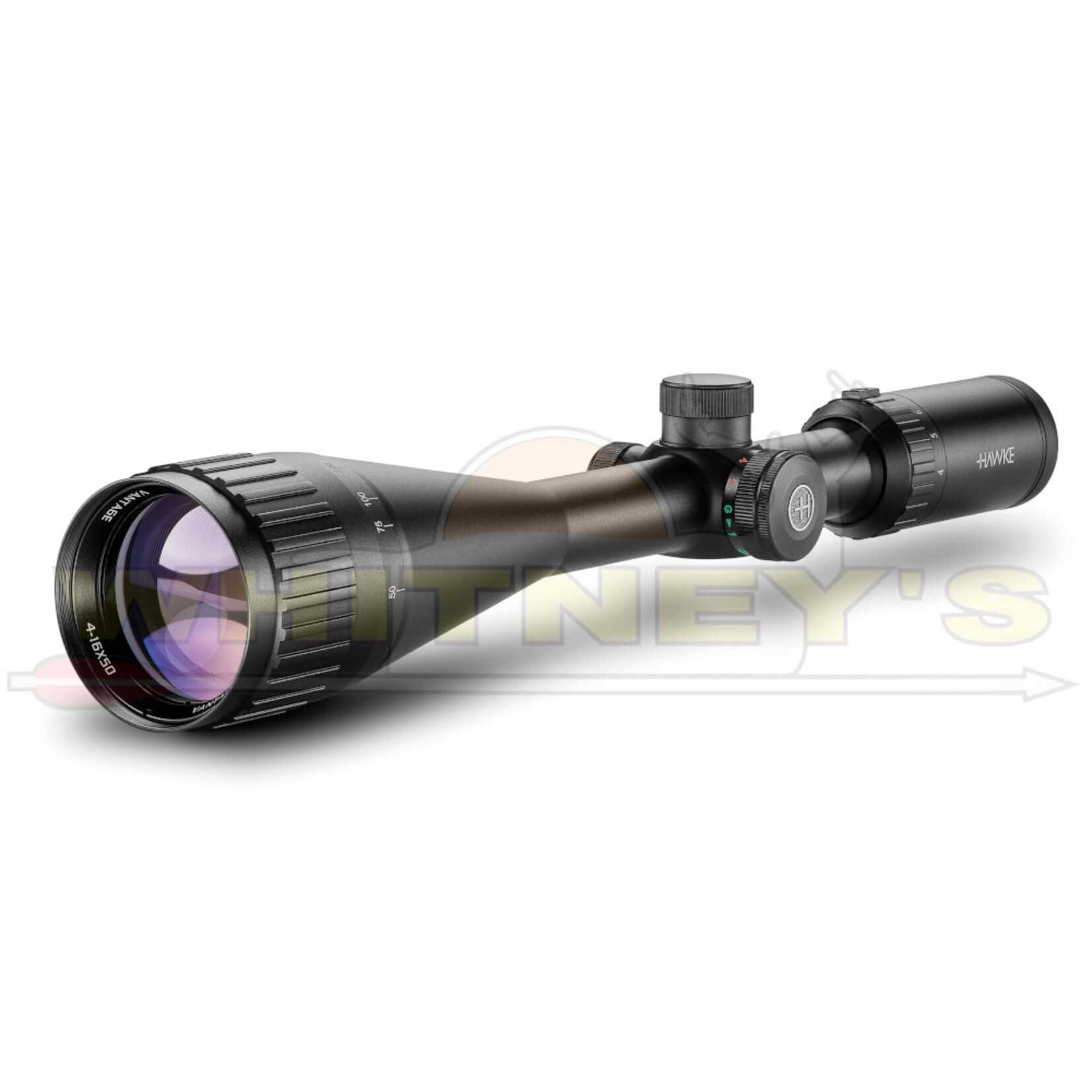

All Vantage riflescopes feature our H2 optics in a variety of configurations. IR models feature precision glass etched reticles with multi-stage illumination in both red and green. Capped Low-Profile Turrets, 1 Inch Mono-tube chassis, Adjustable Objective For Parallax Correction, Illumination, 11 layer Fully Multi, Coated lenses, High torque zoom ring, Fast focus eyeball.
Specs:
- Objective Lens - 50mm
- Reticle - Rimfire .17 HMR (16x)
- Parallax - Adjustable Objective
- Magnification - 4 - 16x
- Optical System - System H2
- Scope Tube - 1 Inch
- Illumination - 5 Levels - Red/Green
- Field of View - 23.6 - 6.2ft @100yds 7.9 - 2.1m @100m
- Field of View - 4.5 - 1.2°
- Eye Relief - 3.5in 90mm
- PX/Focus - 15yds to Infinity 14m to Infinity
- Turret Caps - Yes
- Click Value - 1⁄ 4MOA
- Elevation Turret Clicks (max) - 80 MOA
- Windage Turret Clicks (max) - 80 MOA
- Exit Pupil - 0.49 - 0.12″ 12.5 - 3.1mm
- Ocular Type - Fast Focus
- Power Selector - Knurled Posi-Grip
- Lens Coating - Fully Multi-Coated - 11 Layers
- Focal Plane - SFP (Second Focal Plane)
- Length - 15.3in 388mm
- Weight - 21.9oz 620g
